Aeromotive 14202 / 13214 Combo Kit For Demon Style Carb

Part Number 17251: Double Adj. Bypass Fuel Log Kit (Demon Style)

Double Adjustable Bypass Fuel Log Kit (Part Number 17251). Fits Demon style carburetors.

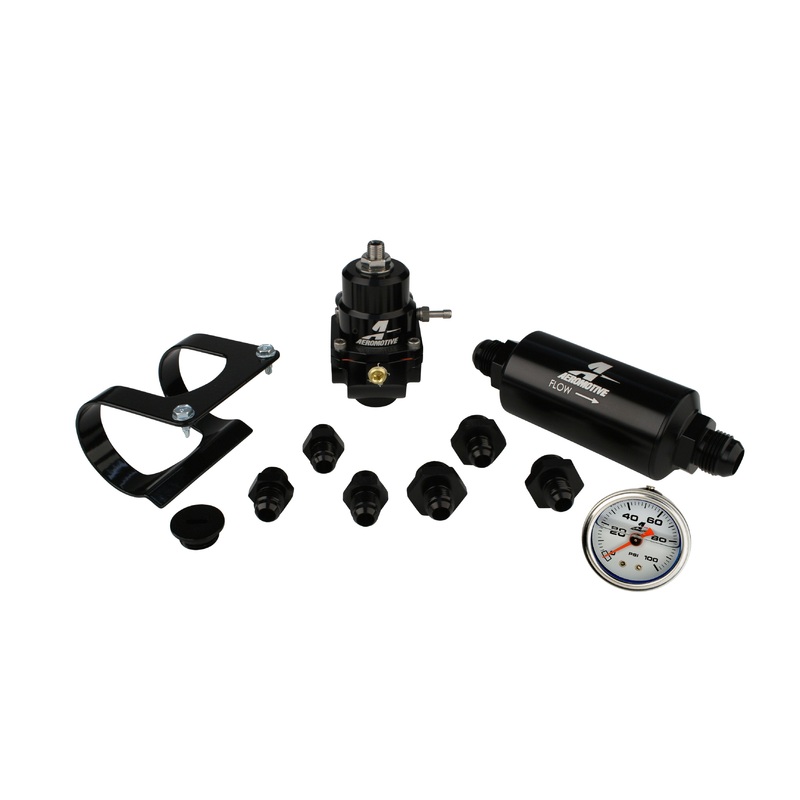

Includes 14202 Dual Action Adjustable Fuel Log, 13214 Double Adjustable Regulator and 15632 Fuel Pressure Gauge

For Demon Style Float Bowls (9/16 x 24 Thread)

The new Aeromotive Fuel Log incorporates features never before available. Each carburetor inlet features a ball and socket assembly thatswivels +/-20 degrees, allowing additional clearance for throttle stops, nit rous plates and other accessories; then locks in place at thedesired position. The telescoping log will fit 4150 or 4500 Dominator (Part Number 14201) and Demon (Part Number 14202) carburetors. The ORB-10 inletand outlet ports will feed the hungriest big blocks, and adapt easily to Aeromotive Part Number 13212 (A2000 Bypass – gasoline) or Part Number 13214(Double Adjustable Bypass – alcohol) fuel pressure regulators.

• Carburetor inlets swivel + or – 2 0 in all directions.
• Telescoping center line 7 .700 to 13.450.
• ORB-10 inlet and outlet ports.
• (2) 1/8 NPT ports for gauges or pressure transducers.
• 1.056 / .806 ID bore.
• Type II bright dip black anodized finish.View Installation Instructions
