Aeromotive Fuel Pump, In-Line, Signature Brushless Spur Gear, 5.0gpm (Pump Sleeve Includes Mounting Provisions)

Part Number 11186 5.0 Brushless Spur Gear Pump – Signature body with mounting feet.
Ground Shaking Performance – Advanced Technology

• Supports

  • Fuel injected engines:
    up to 3400 FWHP – naturally aspirated
    up to 2600 FWHP – forced air induction
  • Carbureted engines:
    Up to 3600 FWHP – naturally aspirated
    Up to 2700 FWHP – forced air induction

• E85 Compatible, reduce max FWHP by 30%
• Lighter than the traditional external mount pumps.
• Reduced current draw at higher, EFI pressures.
• Extended service life in methanol and ethanol.
• New integral spur-gear pumping mechanism.
• 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.
• Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.
• ORB-12 inlet and ORB-10 outlet ports.
• Requires straight 12-VDC to 16-VDC power supply.
• Not compatible with pulse modulated systems or fuel pump speed controllers.

EFI Rated flow of 1,700 lbs./hr. @ 40 psi, 13.5 volts
Carb Rated Flow of 1,850 lbs./hr. @ 9 psi, 13.5 volts

View Installation Instructions

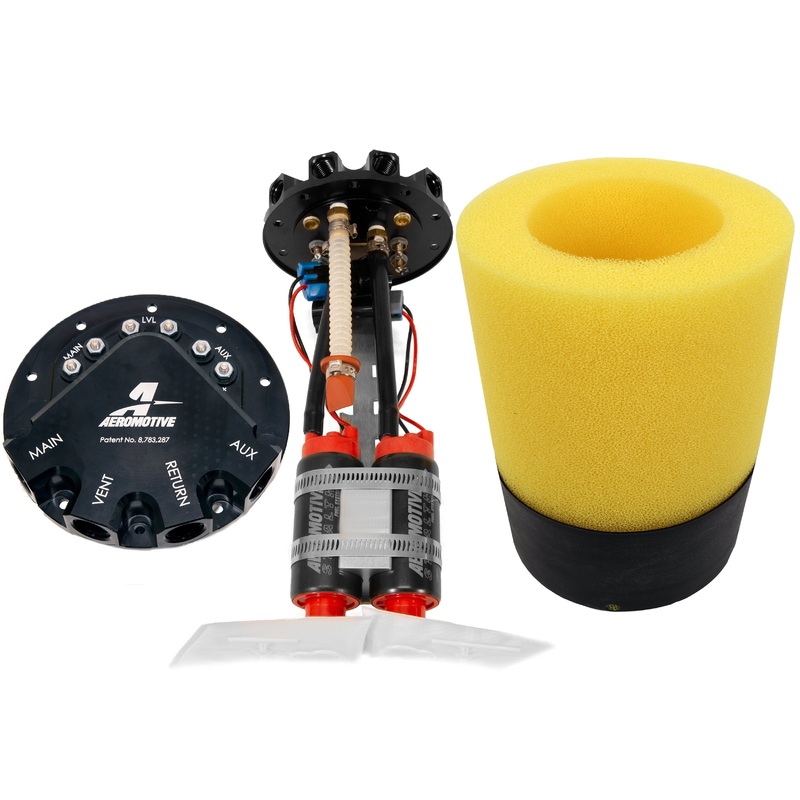

Also Available as a Drop-In Stealth Module and in Complete Stealth Fuel Cells. Click Here for More Info
